In modern manufacturing and quality control processes, accurate measurements are key to ensuring product quality and performance. In order to meet the measurement needs of different sizes and accuracy requirements, the Dual Field of View One-Touch Gauge was born. This gauge integrates a high-precision dual telecentric lens and offers two measurement field modes - high-precision field of view measurement and wide field of view measurement - providing a flexible and efficient solution for a variety of measurement tasks.

Highly accurate field of view measurements

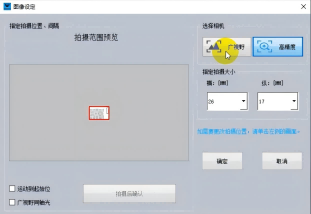

For fine and tiny products, such as needle tips, probes, dial parts, etc., it is often difficult to accurately grasp the edges of the products by traditional measurement methods, resulting in large measurement errors. The high-precision field of view mode of the dual field of view one-touch measuring instrument can easily meet this challenge. This mode utilizes a high-precision dual telecentric lens that can accurately capture the minute details of a product, ensuring the accuracy and reliability of the measurement results. Whether it is the size, shape or positional relationship of the product, it can be accurately measured under the high-precision field of view.

Wide field of view measurement

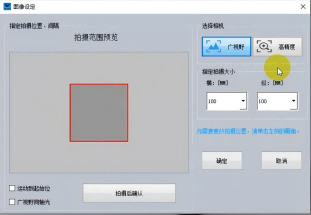

For larger products, the dual field of view one-touch measuring instrument also performs well. Its wide field of view measurement mode can cover a larger measuring range, not only to measure the product's internal diameter size, length and width and other basic parameters, but also to clearly show the product's overall contour. This feature makes the gauge more comfortable in the measurement of large workpieces or complex structures, greatly improving the measurement efficiency and accuracy.

One-touch operation, easy to use

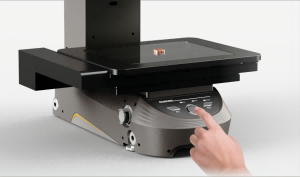

In addition to its high-precision measurement performance, the Dual Field of View One-Touch Gauge also offers the convenience of one-touch operation. Users can quickly switch the measurement field of view and select the appropriate measurement mode according to the measurement requirements with just one touch. This simple and intuitive operation lowers the threshold for using the meter, allowing even first-time users to quickly get started and become proficient.

Wide range of application scenarios

With its advantages of high accuracy, wide field of view and one-button operation, the Dual Field of View One-Button Measuring Instrument has been widely used in many fields.

① In precision machining, it can be used to measure the size and shape of tiny parts;

② In electronic product manufacturing, it can be used to check the size of circuit boards and the layout of components;

③ In the field of quality inspection, it can also be used for accurate 3D scanning and dimensional measurement of products.
