There are many types of in-line gauges on the market with varying qualities, and choosing the right product is critical to ensuring measurement accuracy and improving productivity. Below are some common types of in-line gauges and their applications:

Imaging Device

• Type：2D Image Measuring Instrument, 2.5D Image Measuring Instrument, Fully Automatic Image Measuring Instrument and so on.

• Appliance：

  • It is mainly used for precision measurement of geometric quantities such as length, width, height and angle of workpieces.
  • Widely used in machinery, electronics, instrumentation and other fields, suitable for batch measurement of cell phone parts, gears, springs and other smaller size workpieces.
  • It can be used for on-line inspection of PCB circuit boards, hardware products and so on.

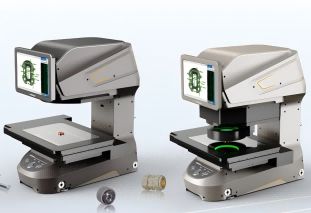

Flashing Meter

• Specificities：Easy to operate, the user only needs to press the start button, the instrument can be quickly and accurately measured according to the appearance and shape of the workpiece.

• Appliance：

  • Particularly suitable for bulk measurements such as cell phone parts, gears, springs, screws, etc.
  • With a wide range of external interfaces, it can be customized and integrated into various production lines for fast on-line measurements.

Profile Gauge

• Type：Surface Roughness Tester, Profile Tester, etc.

• Appliance：

  • Used to measure parameters such as contour and surface roughness of workpieces.
  • Widely used in precision manufacturing, automotive parts, aerospace and other fields.

In-Line Dimension Measuring Instrument

• Specificities：High precision and high stability, capable of checking the internal and external dimensions of precision gauges and precision workpieces.

• Appliance：

  • Can be used to test/calibrate block gauges, smooth ring plug gauges, threaded plug gauges, etc.
  • Inspection of internal and external dimensions of various precision workpieces, such as gears and spline workpieces.

Sifter

• Type：Vision Screening Machine, Optical Sorting Machine, etc.

• Appliance：

  • Mainly used for in-line sorting and screening, such as full inspection of screws, metal gaskets, etc.
  • Widely used in online sorting and screening of hardware products, plastic parts and so on.

Laser On-Line Measuring Instrument

• Specificities：Utilizes the laser distance measuring principle for high precision measurement.

• Appliance：

  • It can be used for three-dimensional measurements in the fields of construction, decoration and curtain walls.
  • It is suitable for topographic surveying and mapping, monitoring of dangerous rocks on highway slopes, etc.
