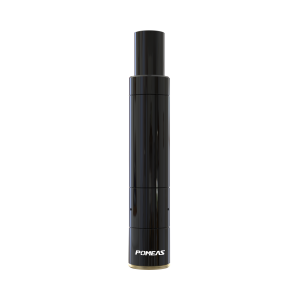

The PMS-SFS-D8012 is a high-performance optical probe for spectral confocal sensors from POMEAS, designed for high-precision, non-contact measurements. It integrates advanced optical technology and sophisticated signal processing algorithms to provide stable, reliable measurements in a wide range of industrial applications.

Core Parameters:

• Nearest Measuring Distance: 12mm This design allows the sensor to effectively measure from a closer distance without touching the object to be measured, making it suitable for scenarios where space is limited or where close and precise measurements are required.

• Measuring range: 1mm Within this range, the PMS-SFS-D8012 provides extremely high measurement accuracy, meeting the need to accurately capture small size changes or height differences.

• Maximum light angle: ±29.3°. This parameter reflects the field of view of the sensor's optical system, ensuring that accurate measurement data can be obtained at different angles.

• N.A. (Numerical Aperture): 0.49. A high numerical aperture means that the sensor is able to collect more information about the light, thus increasing the sensitivity and resolution of the measurement.

• Maximum Linearity Error: ±0.2 um. This extremely low level of error ensures that measurements are extremely accurate, essential for precision manufacturing and quality control.

System Configuration:

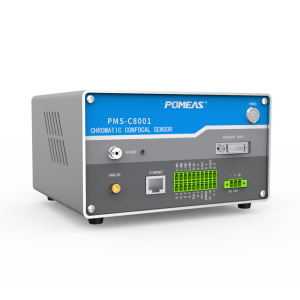

• Matching Controller: PMS-SFS-C8001 This controller works seamlessly with the PMS-SFS-D8012 optical probe to provide stable data transmission and efficient measurement control, ensuring the stable operation of the entire measurement system.

• Supporting software: CCS VR1.0.2.4. With this software, users can conveniently carry out operations such as measurement parameter setting, data collection, analysis and report generation, which greatly improves work efficiency and the utilisation of measurement data.

Areas of application

1. Mobile phone, tablet, computer and other metal chassis machining industry: in the processing of metal chassis, SFS-D8012 can accurately measure the surface flatness, thickness and other key dimensions to ensure that product quality meets the design requirements.

2. PCB boards, connectors, IC chips and other electronic industries: in the production and inspection of electronic components, the sensor can efficiently detect small size changes and height differences, helping to improve production efficiency and product yield.


3. Panel, glass, tempered film and other industries: in the processing and inspection of flat panel displays, architectural glass, mobile phone screens and other products, SFS-D8012 can provide accurate non-contact measurement solutions to ensure product quality stability and consistency.


4. Semiconductor wafers, new energy, photovoltaic and other industries: In the high-tech manufacturing field, the sensor's high accuracy and reliability make it an ideal choice for semiconductor wafer inspection, new energy material thickness measurement, photovoltaic panel quality inspection and other applications.
