In the field of precision manufacturing, the quality of metal moulds is directly related to the accuracy and consistency of products. With the advancement of Industry 4.0, the requirement of measuring accuracy of moulds is getting higher and higher. With its excellent performance, POMEAS Image 3 series image measuring instruments provide solutions for the precision measurement of metal moulds.

Measurement background:

Metal moulds need to withstand extreme conditions such as high temperature and high pressure during the manufacturing process, so their dimensional accuracy and surface quality are crucial. Any small error may lead to product defects, affecting productivity and product quality.

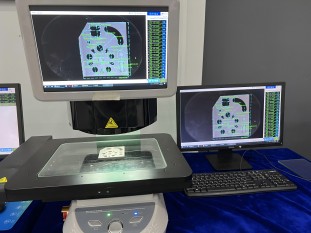

The POMEAS Image 3 series of image measuring instruments are ideal for metal mould and die measurements due to their high accuracy, stability and versatility. This series of gauges uses advanced optical imaging technology and powerful software analysis to ensure industrial-grade accuracy in every measurement.

High-precision imaging technology:

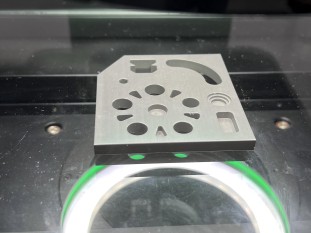

Equipped with a high-precision CCD camera and sophisticated optics, the POMEAS Image 3 series captures microscopic details of the mould surface. Both tiny burrs and complex geometries are clearly rendered.

Powerful software analysis capabilities:

Built-in intelligent algorithms enable fast and accurate analysis of captured images, automatically identifying key dimensional and shape parameters of the mould. The software is also capable of performing complex 3D measurements to assess the depth and spatial shape of the mould.

Versatile measurement mode:

The POMEAS Image 3 series supports a variety of measurement modes, including 2D planar measurement, 3D morphology measurement, and high-contrast surface defect detection, to meet the measurement needs of different moulds and dies.

With its excellent performance, the POMEAS Image 3 series image measuring instrument provides a powerful tool for precision measurement of metal moulds and dies. With the precision requirements of industrial manufacturing, the POMEAS Image 3 series not only improves measurement efficiency, but also ensures mould quality and product consistency.
