In the field of modern optical imaging, auto-doubling lenses provide flexible and efficient imaging solutions for a variety of application scenarios with their unique features and benefits.

Principle of Auto Zoom Lens

The working principle of auto zoom lens is based on complex optical design and precise mechanical structure. By means of a motor or other driving device, the lens group inside the lens is controlled to move relative to each other, thus changing the optical path and realizing continuous or segmental changes in focal length. This change enables the size and angle of view of the imaging to be automatically adjusted to meet different observation needs.

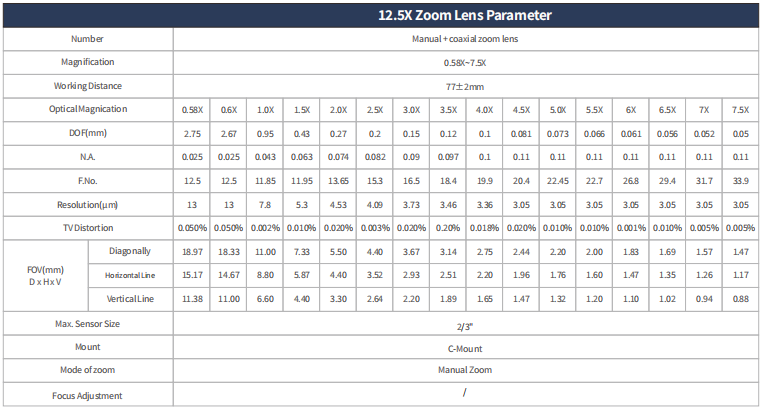

Auto Zoom Lens Parameters

1, the zoom ratio: refers to the ratio of the maximum focal length of the lens to the minimum focal length, reflecting the zoom ability of the lens.

2, focal length range: covers the lens can achieve the shortest focal length to the longest focal length of the interval.

3, aperture value: determines the amount of light into the lens, affecting the imaging brightness and depth of field.

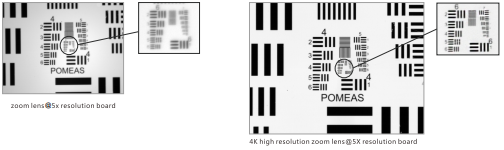

4, resolution: reflecting the lens on the ability to resolve details, usually expressed in pairs of lines per millimeter can be resolved.

5, working distance: refers to the range of distances from the front of the lens to the surface of the object that can be clearly imaged.

Auto Zoom Lens Usage

1、Industrial Inspection: In industrial production, the automatic zoom lens can be used for high-precision inspection of the appearance, size, defects, etc. of the product. It can quickly switch between different magnifications to ensure comprehensive and accurate inspection of product quality.

2、Medical field: In medical surgery, it helps doctors to clearly observe diseased tissues and realize the detailed view of different depths and parts. At the same time, in medical research and teaching, it also provides strong support for microstructure research and demonstration.

3、Security monitoring: It can flexibly zoom in and out of the monitoring area, and quickly focus on specific targets when needed to improve the effectiveness and accuracy of monitoring.

4、Scientific research experiments: meet the needs of researchers to observe samples under different experimental conditions, helping to explore and study the microscopic world.

With its advanced principles, key parameters and wide range of applications, POMEAS auto zoom lenses play an indispensable role in many fields and continue to promote the development and application of optical imaging technology.
