In the modern manufacturing industry, nuts as an important part of the connectors, its dimensional accuracy is directly related to the quality and safety performance of the product. With the expansion of production scale and the intensification of market competition, the demand for enterprises to improve production efficiency and ensure product quality is increasingly urgent. The traditional manual measurement method is not only inefficient, but also susceptible to human factors, resulting in unstable measurement accuracy. Therefore, the realization of automated measurement of nut production line has become a key step to enhance the competitiveness of enterprises.

In order to meet the demands of efficient production, the measurement system on the nut production line must have the following characteristics:

Quick Measurement：The ability to measure nut dimensions in real time, continuously, without affecting the overall speed of the production line.

Highly Accurate：Ensure the accuracy of measurement results to meet the strict requirements of dimensional accuracy of products.

Data Traceability：Measurement results can be recorded and exported in real time for subsequent quality control and data analysis.

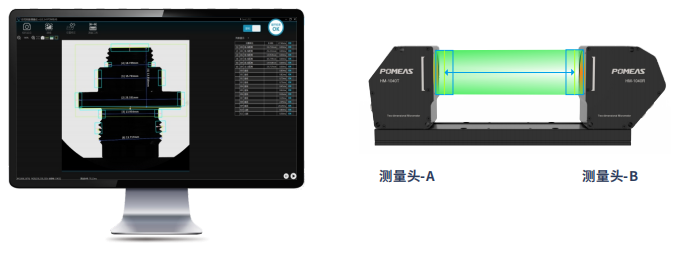

In response to the above requirements, we have designed an automated measurement solution based on an in-line image measuring instrument. The core of this solution is to install a state-of-the-art in-line image measuring instrument on the nut production line, capture the image of the nut through a high-definition camera, and utilize image processing technology to quickly analyze and measure all key dimensions of the nut.

Program Advantages

• Quick Measurement：The in-line image measuring machine is able to measure nuts in a very short period of time, which significantly improves the productivity of the production line.

• Highly accurate：Adopting advanced image processing technology and high-precision measurement algorithms, the measurement accuracy is as high as 0.1μm, which meets or even exceeds the industry's requirements for nut size accuracy.

• Data traceability：Measurement results are recorded and exported in real time, providing reliable data support for product quality control and subsequent analysis.

• Easy to integrate：The system is designed with compatibility with existing production lines in mind and can be easily integrated into existing production processes, reducing the cost and difficulty of retrofitting.

• Reducing human error：Automated measurement avoids the influence of human factors on the measurement results and improves the stability and reliability of the measurement.

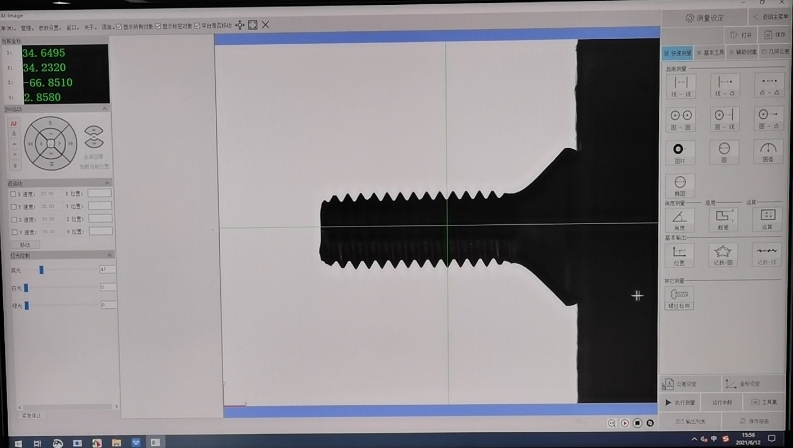

Detection effect

Through the implementation of this automated measurement solution, production efficiency has been significantly improved, product quality has been more strictly controlled, while reducing production costs and labor input. In addition, through real-time data analysis and feedback mechanism, the enterprise can find and solve problems in the production process in a timely manner, and further enhance the overall operational efficiency and competitiveness.
