As a common industrial material, quartz filter sheets are widely used in several fields. Their quality and dimensional accuracy have a significant impact on the performance and service life of the product. Therefore, it is particularly important to measure and inspect quartz filters using an image measuring instrument.

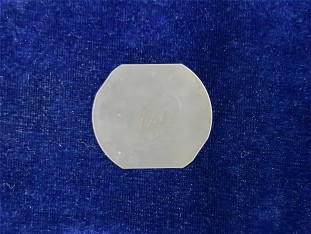

Testing samples:

Detecting Difficulties:

Measurement challenges due to high transparency: Due to their high transparency, quartz filters can be subject to interference from light refraction and reflection using traditional optical measurement methods, resulting in inaccurate measurement results.

Requirements for measurement accuracy: Quartz filters need to achieve extremely high dimensional accuracy in some applications, which requires a high degree of stability and accuracy in the measurement equipment.

Variability from batch to batch: Due to differences in production processes and material sources, different batches of quartz filters may have dimensional and performance variations that need to be inspected individually.

Detection needs:

Dimension Measurement: Including the length, width, thickness and other key dimensions of the quartz filters, which need to be accurately measured using high-precision measuring equipment.

Surface Quality Inspection: Check the surface of quartz filters for scratches, bubbles, cracks and other defects that may affect their filtration effect and performance.

Optical Performance Inspection: Inspection of the optical properties of quartz filters, such as transmittance, cut-off wavelength, etc., to ensure that they meet specific application requirements.

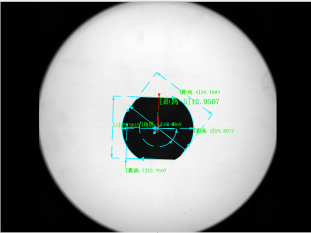

Detection results:

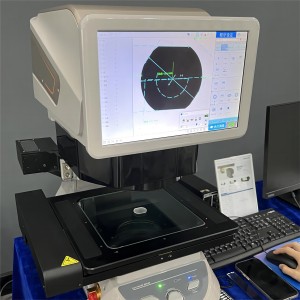

With the advantages of high precision, high efficiency and non-contact measurement, the POMEAS image measuring instrument is ideally suited for dimensional measurement and surface quality inspection of quartz filters. Through image acquisition, processing and analysis, the measurement data of quartz filters can be obtained quickly and accurately, and quality assessment can be performed.
