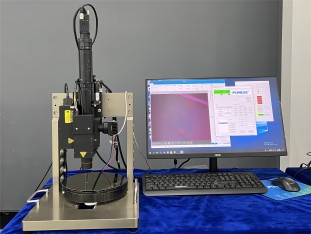

The zoom lens point laser focusing solution mainly involves a system that combines a POMEAS zoom lens and laser focusing technology. By combining the motorized zoom lens and laser focusing technology, the solution is able to achieve an efficient, fast and precise focusing process, which is suitable for a variety of occasions where high precision focusing is required.

Program components:

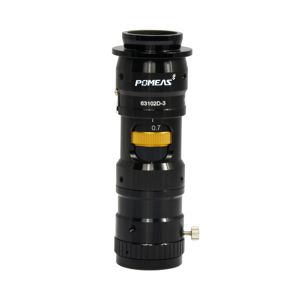

1、Lens: The lens consists of a POMEAS zoom lens as the main lens, which can be continuously zoomed according to the demand, thus adapting to the requirements of different working distances and magnification; and a compound achromatic objective lens, which can reduce the aberration and chromatic aberration and ensure that the image remains clear and accurate throughout the whole range of the field of view.

2、Coaxial optical module: It has a point light source that emits visible light. This visible light is reflected by the first beam splitter and then reaches the object side of the main lens through the front common lens to assist in illuminating the object to be measured.

3、 Laser focus module: including infrared laser light source and photoelectric sensor. The infrared laser light source emits an infrared laser beam, which is reflected by the first beam splitter and then emitted to the object under test through the front common lens. The infrared laser beam reflected back by the object under test again through the front-end common lens, the first beam splitter, back to the laser focusing module, and in the photoelectric sensor imaging for the spot.

Program Strengths:

High-precision focusing: Combined with the laser focusing technology and APO objective lens, this solution is able to realize high-precision and fast focusing process. Whether for static or dynamic targets, the focusing operation can be completed quickly and accurately.

High image quality: The compound achromatic design of the APO objective lens makes the image remain clear and accurate throughout the entire field of view, effectively reducing the effects of chromatic aberration and distortion. At the same time, the excellent performance of the POMEAS zoom lens ensures image detail and resolution.

Fast Response: The laser focusing technology is characterized by a fast response time, which enables the focusing process to be completed in a very short period of time. This gives the solution a clear advantage in situations where fast target acquisition or real-time imaging is required.

Strong adaptability: The continuous zoom performance of the POMEAS zoom lens enables the program to adapt to different working distances and magnification requirements. Whether for near or far targets, it can realize clear imaging by adjusting the focal length.

Good stability: the program adopts mature optical and mechanical structure design, with good stability and reliability. In the process of long-time use, it can maintain stable imaging quality and focusing performance.
