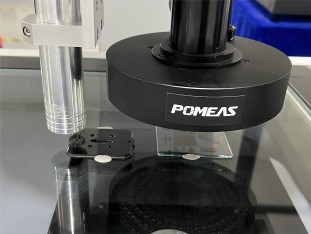

Multi-sensor measurement system measurement of acrylic sheet is characterized by its ability to use a variety of sensor technology, to achieve high precision, high efficiency and multi-parameter simultaneous measurement of acrylic sheet plane size, contour and height difference.

The Multi Sensor Measurement System has the following distinctive product features:

High-precision Measurement: Using optical, laser or photoelectric technical means, it realizes accurate measurement of the shape, size and surface features of the object by measuring the three-dimensional coordinate information of the object's surface contour; a variety of sensor configurations and data processing methods ensure the high precision of the measurement.

High efficiency: Linear motor drive mode makes the system run fast and improves the measurement efficiency; the moving bridge structure ensures the stability of the measurement results at high speeds, which further ensures the measurement efficiency.

Versatility: It can accomplish complex measurement tasks, including the measurement of points, lines, radii and diameters, angles and intersections, widths, distances, etc.; for workpieces with complex shapes, it is capable of measuring a wide range of parameters, such as concentricity, linearity, shape-circularity, straightness, etc.; it is also capable of assessing the quality of surface processing of the workpieces, such as flatness, face and line contouring, and roughness.

Stability and Reliability: Cantilever structure and cast aluminum body design ensure the stability and reliability of the equipment; a variety of structure types can be selected, with a quiet class drive platform, further enhancing the stability and reliability of the equipment.

Intelligent operation:  the self-developed software interface is friendly and easy to operate, providing accurate and stable function of grasping the edge; the product is equipped with auto-focus, auto-dimming function, as well as the knob and software control options for light source adjustment, which makes the operation more convenient; it is equipped with the element slide function and the feature positioning function, which allows accurate measurement even if the workpieces are arbitrarily placed.

Wide range of applications: Suitable for a wide range of manufacturing applications, from rapid inspection on the shop floor to precision measurement requirements in the laboratory to fully automated, complex Industry 4.0 production environments.

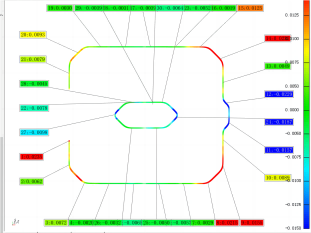

Test results:
