In industrial production, screws are used as important connectors, and their quality directly affects the overall performance and safety of the product. Therefore, rigorous inspection of screws is a key part of ensuring product quality. In this paper, we will introduce a screw inspection application based on a vision solution, focusing on the detection of thread defects or wear.

This vision solution focuses on inspecting the threaded portion of the screw, identifying and marking the presence of defects or wear to ensure the reliability and durability of the screw.

Detection programme:

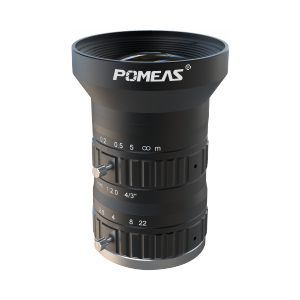

Mega FA Lens

Adopting a million-grade FA lens with high resolution, high contrast, and low distortion, it is able to clearly capture the thread details of screws. This lens is suitable for high-precision and high-demand visual inspection tasks, and can ensure the accuracy and reliability of inspection results.

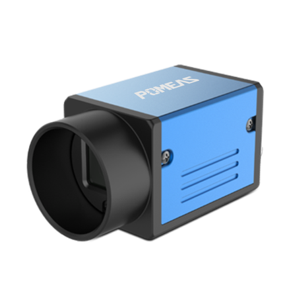

High Definition Industrial Camera

As an image acquisition device, the HD industrial camera is characterised by high sensitivity, high dynamic range, low noise and other performance features. It can be used in conjunction with megapixel FA lenses to acquire high-quality screw images and provide reliable data support for subsequent image processing and analysis.

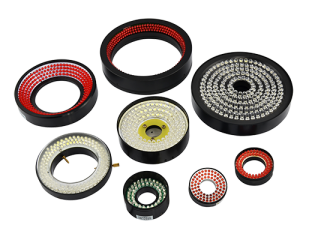

Ring Light Source

The use of a ring light source provides uniform, stable lighting conditions and reduces the impact of shadows and reflections on image quality.

This solution is based on a vision solution for screw inspection applications, focusing on the detection of thread defects or wear. Through the use of million-class FA lens, high-definition industrial camera and suitable light source configuration, it achieves high-precision detection of screw threads. The solution has the advantages of high inspection efficiency, high accuracy and non-contact detection, which can greatly improve the automation level of the production line and product quality.
