As the core component of a smartphone, the RGB (red, green and blue) display performance of a cell phone screen directly affects the user's visual experience. In order to ensure the high quality display of cell phone screen, refined inspection technology is crucial. As a high-precision inspection technology, the application of laser autofocus microscope system in the RGB inspection of cell phone screen is getting more and more attention.

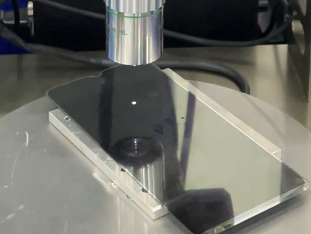

Cell Phone Screen RGB Detection

Microscope system to detect cell phone screen RGB principle


The laser autofocus microscope system utilizes the self-focusing property of the laser beam, combined with a precision optical system and image processing technology, to achieve accurate detection of RGB pixel points on the cell phone screen. The laser beam passes through a specially designed illumination system to form a high-resolution point light source that scans the surface of the cell phone screen. The system automatically adjusts the focus by monitoring the intensity and phase changes of the reflected light in real time to ensure that a clear and accurate image of the RGB pixels is acquired.


Application of laser autofocus microscope system in RGB inspection of cell phone screen



1, RGB pixel point analysis: The laser autofocus microscope system is able to observe the RGB pixel points on the cell phone screen in high resolution and analyze their distribution, arrangement and color performance. This helps to assess the display effect and color reproduction ability of the screen, and provides a basis for optimizing the screen manufacturing process.

2, defect detection: using laser autofocus microscopy system, it can accurately detect defects in the RGB pixel points of cell phone screens, such as bad dots, bright dots, dark dots and so on. These defects may lead to a decrease in the screen display effect and affect the user experience. By finding and dealing with these defects in time, it helps to improve the quality of the cell phone screen.

3. Uniformity assessment: The brightness and chromaticity uniformity of the RGB pixel points of the cell phone screen is crucial to the overall display effect. The laser autofocus microscope system can comprehensively detect the uniformity of the screen and provide data support for improving screen performance.

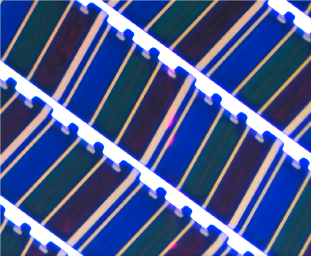

Application of laser autofocus microscope system in RGB inspection of cell phone screen

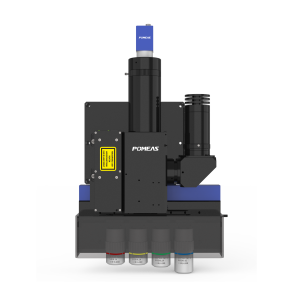

Focusing Example

Advantages of laser autofocus microscope system in cell phone screen RGB inspection

1, high precision: laser autofocus microscopy system with high resolution and high sensitivity, can accurately capture the small changes in the RGB pixel points of the cell phone screen, to ensure the accuracy of the detection results.

2, rapidity: the system adopts auto-focus technology, which can complete the detection of a large number of pixel points in a short period of time and improve the detection efficiency.

3, non-destructive: laser auto-focus microscope system adopts non-contact detection, will not cause damage to the cell phone screen, to ensure the integrity and reliability of the product.

4、Automation and Intelligent: By combining computer vision and image processing technology, the laser autofocus microscope system can realize automation and intelligent inspection process, reduce human error and improve the accuracy and consistency of inspection.

Laser autofocus microscopy system has significant advantages and wide application prospects in RGB inspection of cell phone screens. With the continuous development of the smartphone market, the AFLS will play an increasingly important role in the quality control and performance evaluation of cell phone screens.
