Advantages of laser autofocus microscopy for PCB ceramic substrate inspection applications

share:

2024/06/07

author:adminBOSS

In the field of electronic packaging, PCB ceramic substrates are widely used because of their excellent performance. In order to ensure its quality and reliability, high-precision inspection technology is particularly important. As an advanced microscopic observation and inspection technology, laser autofocus microscope system provides strong support for the inspection of PCB ceramic substrates.

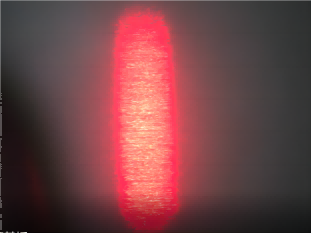

PCB ceramic substrate before focusing

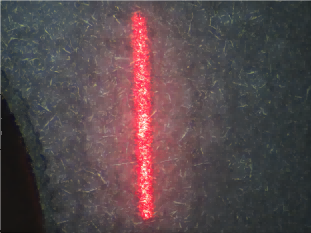

PCB ceramic substrate after focusing



Application of laser autofocus microscope system in PCB ceramic substrate inspection





1, microstructure observation: laser autofocus microscopy system can observe the PCB ceramic substrate microstructure at high magnification, such as circuit wiring, welding points, components, etc., to help inspectors find potential defects and problems.



2, welding quality inspection: in the manufacturing process of PCB ceramic substrate, welding quality directly affects its overall performance. Laser autofocus microscope system can clearly observe the morphology and structure of the welding point, to determine whether the welding is uniform and solid, so as to ensure the welding quality.



3, cracks and defects detection: ceramic materials are prone to cracks and defects in the manufacturing and use process. Laser autofocus microscope system can accurately detect these subtle cracks and defects, to help manufacturers take timely measures to repair or improve.





Laser autofocus microscope system in the PCB ceramic substrate inspection advantages





1, high-resolution imaging: laser autofocus microscopy system has a high-resolution imaging capability, can clearly show the PCB ceramic substrate microstructure, to provide inspectors with a wealth of image information.



2, fast autofocus: the system has a fast autofocus function, can automatically adjust the focal length in a short period of time, to obtain a clear image, improve the detection efficiency.



3, non-contact detection: laser autofocus microscope system adopts non-contact detection, will not cause damage to the PCB ceramic substrate, to ensure the integrity and reliability of the sample.



4、Automation and Intelligent: By combining computer vision and image processing technology, the laser autofocus microscope system can realize automation and intelligent inspection process, reduce human error and improve the accuracy and consistency of inspection.





Laser autofocus microscopy system has a wide range of applications and significant advantages in PCB ceramic substrate inspection. With the continuous development of electronic packaging technology, laser autofocus microscopy system will continue to play its important role in PCB ceramic substrate inspection, to improve product quality and reliability to provide strong support.
