In manufacturing, tools are important tools used for cutting, drilling, milling and other machining operations. The dimensional accuracy of the tool has a critical impact on machining quality and efficiency. Therefore, accurate and efficient measurement of tool dimensions is an important part of tool management.

Detection needs:

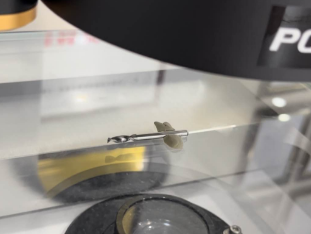

Measure the dimensional data such as tool length, top diameter, and cutting edge to judge whether it meets the requirements for use.

Detection Program:

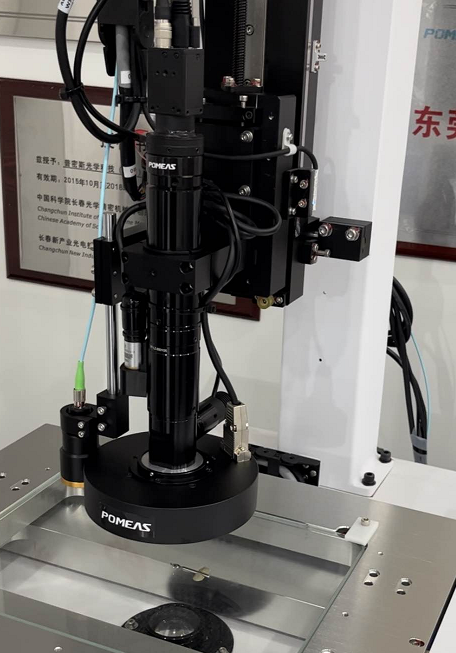

With high-precision industrial lenses, industrial cameras and image processing software, POMEAS image measurement vision solutions can quickly and accurately acquire tool geometry and shape information.

Program Strengths:

1. The solution is paired with a high-definition industrial camera, a zoom lens and a spectral sensor to obtain high-precision measurement results with high reliability.

2. Measurement results are directly displayed as images and reports, allowing operators to visualize the measurement results more intuitively.

3. The POMEAS image measurement vision solution is suitable for different types and sizes of tool measurement, and by adjusting the module configuration, it can meet the needs of various applications.

4. Automated and intelligent data processing and analysis can be realized to improve work efficiency and accuracy.
