Sensor technology plays a crucial role in modern manufacturing, especially in areas where high precision measurement of products is required. As an advanced measurement tool, the point spectral confocal sensor, with its high speed and stable performance, shows a wide range of application prospects in the measurement of battery boxes.

Size Measurement

The Spot Spectrum Confocal Sensor is capable of accurately measuring a variety of dimensional parameters of a battery box including, but not limited to, thickness, width, height, and height difference. In addition, it can also measure the outer and inner diameters of the battery box, providing strong support for quality control during the manufacturing process. This high-precision dimensional measurement capability ensures that the battery box meets the expected design specifications during the manufacturing process, thereby improving the overall quality and reliability of the product.

Shape measurement

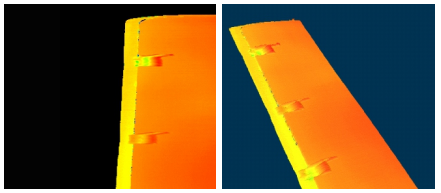

In addition to dimensional measurements, the Spot Spectrum Confocal Sensor provides detailed measurements of the shape of the battery box. It is capable of detecting the warpage and flatness, as well as the 2D and 3D shape of the battery box. Accurate measurement of these shape parameters helps to detect possible deformations or distortions of the battery box during the production process, so that appropriate measures can be taken to correct them. In addition, the sensors measure the height, width and volume of the sealing material on the battery box, which is essential to ensure the sealing performance of the battery box.

Appearance Inspection

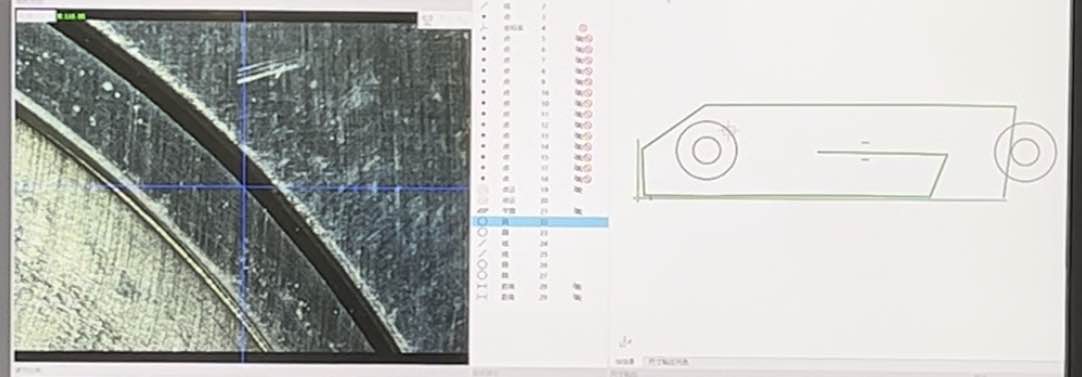

The Spot Spectrum Confocal Sensor also excels in the cosmetic inspection of battery boxes. It accurately detects dents (depressions), wrinkles, undulations, cracks and chips on the surface of the battery box. Detection of these defects is critical to ensuring the cosmetic quality and reliability of the battery box. In addition, the sensors are equipped with a character recognition function that recognizes various marking information on the battery box, further improving the accuracy and usefulness of the measurement.

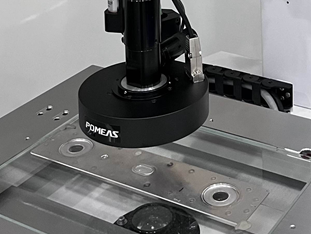

POMEAS Spot Spectral Confocal Sensors provide not only highly accurate dimensional and shape measurements, but also reliable appearance inspections in battery box measurements, providing a strong guarantee for the quality control of battery box production.
