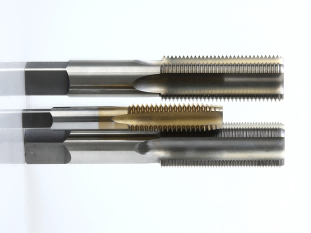

A tapered thread plug gauge is a tool used to verify the dimensional correctness of tapered threads and is widely used in manufacturing to ensure the accuracy and quality of threaded parts.

Taper Thread Plug Gauge Measurement Requirements

(1) Taper measurement: The taper of the tapered thread plug gauge needs to be within a certain deviation range to ensure that the taper of the thread meets the requirements.

(2) Dimension Measurement: Measure the key dimensions such as outer diameter and center diameter of the tapered thread plug gauge to ensure that it meets the design specifications.

(3) Thread profile: check whether the thread profile is complete, correct and in accordance with the standard.

(4) Tolerance control: Strict tolerance control is required during measurement to ensure accurate and reliable measurement results.

Taper Thread Plug Gauge Measurement Program

POMEAS Image Dimension Measuring Instrument has the advantages of high accuracy, high efficiency and easy operation, which can greatly improve the measurement accuracy and efficiency of taper thread plug gauge. It can ensure the accurate and reliable measurement results of tapered thread plug gauges and meet the high precision requirements in manufacturing industry. At the same time, the instrument can also be used for the dimensional measurement of various precision workpieces, which is widely used in quality control and product development in the manufacturing industry.
