Types of autofocus solutions

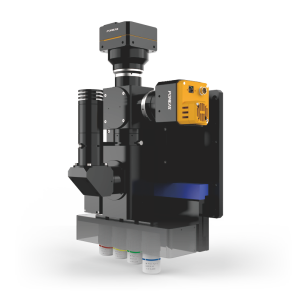

Laser autofocus microscope

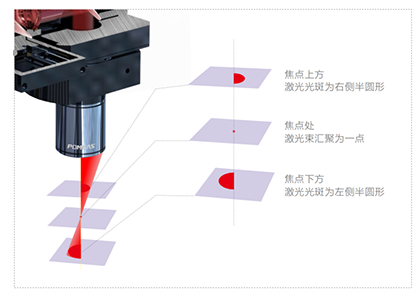

In-line: Real-time sensing and focus adjustment of small undulations on the sample surface is achieved through precise positioning and fast feedback of the laser beam.

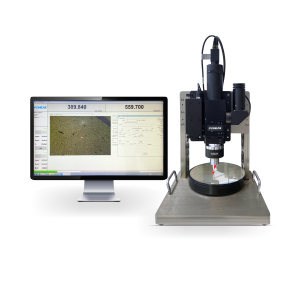

(Single-head) APO Laser AF Microscope-Motor: motor-driven for autofocus, with high focusing accuracy and speed.

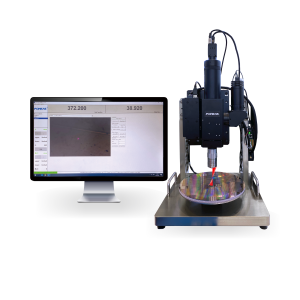

(Single-head) APO Laser AF Microscope - Piezoelectric: utilises the piezoelectric effect to achieve fast focusing, with higher focusing speed and accuracy, usually used where high precision focusing is required.

Spectral autofocus microscope

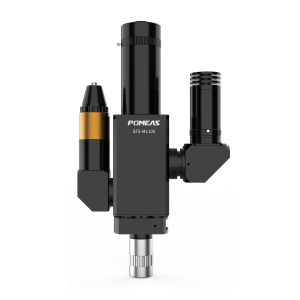

APO Spectral Autofocus Microscope: Combines spectral analysis techniques for more sophisticated focusing and imaging needs.

Other autofocus solutions

These include ranging methods (infrared, ultrasonic, triangulation), rotating diaphragm out-of-focus detection, video signal analysis, focus detection (contrast, split image, phase detection), and time-of-flight and masked pixel phase detection. Each of these methods has applications in modern autofocus systems such as cameras and microscopes.

Autofocus Features and Benefits

Features


① The autofocus system can automatically adjust the focal length of the lens according to the distance between the object to be measured and the vision system to keep the image clear.

② The laser autofocus microscope system also features integrated design and intelligent operation, which can simplify the system structure, reduce maintenance costs, and improve the overall performance and stability of the system.

Advantages


①Auto-focus technology improves the clarity and stability of observation and ensures that high-quality, high-contrast images can be obtained under different observation conditions.

② The laser autofocus microscope system also has the advantages of high precision, high speed and high stability, which can meet the needs of complex applications and environments.

Autofocus programme application areas:

1、Research and industrial inspection: The auto-focus microscope system is widely used in the fields of material science, biomedicine, semiconductor inspection and so on. It helps researchers to deeply analyse the microstructure of materials, which provides strong support for optimizing material properties and improving product quality. In industrial inspection, auto focus technology can quickly and accurately detect the focusing condition of the image and automatically adjust the focal length to ensure that the sample is always in a clear state, thus improving the inspection efficiency and accuracy.

2、Machine vision and automation in machine vision applications, auto focus technology makes the camera can quickly and accurately achieve focus, improving the efficiency and accuracy of image acquisition. This is important for applications such as QR code scanning, parcel sorting and quality control in the logistics field. Autofocus technology is also used in rapid automation and other fields, such as barcode reading, packaging classification, security, etc., these detected objects are either different sizes or different distances between the lens, autofocus technology can flexibly adjust the focal length to meet the needs of different applications.

3、Other areas of autofocus technology is also used in ophthalmic examination, electronic component detection and other fields, for doctors and technicians to provide a more accurate and efficient means of observation.
