Measurement background

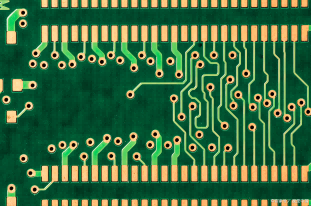

In the electronics manufacturing industry, PCB (Printed Circuit Board) as the core component of electronic equipment, its size measurement is crucial. However, PCB boards are of various sizes and complex structures, and traditional manual measurement methods are not only time-consuming and labor-intensive, but also difficult to ensure the accuracy and consistency of measurement. Therefore, how to quickly and accurately measure the size of PCB boards has become an urgent problem in the industry.

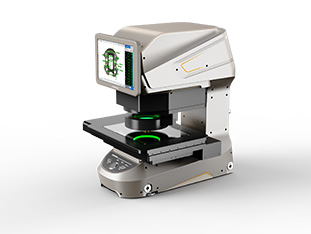

PCB Board Size Rapid Measuring Instrument

With its excellent “fast, accurate and stable” characteristics, the PCB board size fast measuring instrument can quickly put on the measuring platform for comprehensive dimensional inspection of PCB boards. After a key is activated, it only takes 1 second to accurately capture and output the precise dimensional data of up to 100 key parts, and its measurement accuracy reaches an amazing 1 micron level.

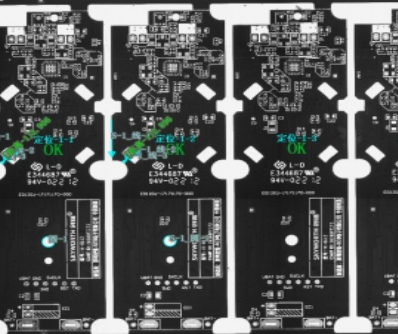

PCB Measurement Demonstration

PCB Board Measuring Instrument Application Advantages

1、Improve production efficiency: Through fast measurement, POMEAS image size measuring instrument can significantly reduce the measurement time of PCB boards and improve production efficiency. This means shorter lead times and higher market competitiveness for electronics manufacturers.

2、Reduce measurement cost: Compared with the traditional manual measurement method, POMEAS image size measuring instrument can reduce the labor cost and time cost. At the same time, the high accuracy of the measurement results also reduces the rework and material waste caused by measurement errors.

3、Improve product quality: High-precision measurement ensures the dimensional accuracy of PCB boards, which improves the overall quality of electronic products. This is important for improving brand image and customer satisfaction.
