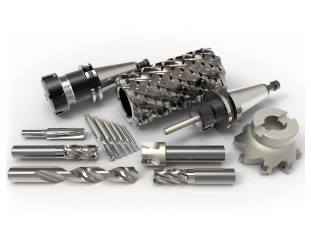

In the field of machining, milling cutter as an important cutting tool, the accuracy of its size directly affects the machining accuracy and product quality. Therefore, accurate measurement of milling cutter size is a key link to ensure the smooth progress of the machining process.

Milling cutters usually have complex geometries and small dimensions, and traditional measurement methods such as caliper measurement and micrometer measurement are not only cumbersome, but also difficult to accurately measure each dimensional parameter of the milling cutter. In addition, with the continuous development of the manufacturing industry, the measurement accuracy and efficiency of the milling cutter dimensions are required more and more.

Solution:

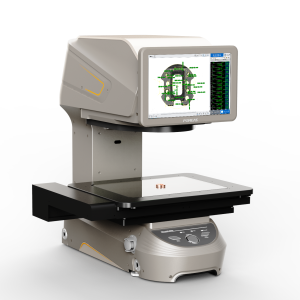

The POMEAS Image Dimensioner takes a picture of the milling cutter with a high resolution camera to obtain its image information. Then, image processing algorithms are used to analyze the image, identify the edges and feature points of the milling cutter, and calculate its dimensional parameters. The image processing algorithm usually includes steps such as image preprocessing, edge detection, feature extraction, and size calculation, which can effectively remove noise and interference in the image and accurately extract the size information of the milling cutter.

Program Strengths:

• High Precision: POMEAS Image Dimension Measuring Instrument adopts high resolution camera and advanced image processing algorithm, which is able to realize high precision dimension measurement, and the measurement accuracy can reach micron level.

• Non-Contact Measurement: Avoiding the damage that may be caused to the milling cutter by the traditional contact measurement method, and at the same time improving the stability and reliability of the measurement.

• Rapid measurement: can complete the dimensional measurement of the milling cutter in a short period of time, improving production efficiency.

• Versatility: can measure the diameter, length, edge length, edge diameter and other dimensional parameters of the milling cutter to meet different measurement needs.
