Measurement requirements:

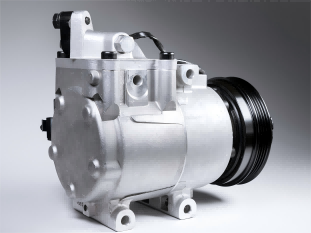

The measurement of air-conditioning compressor components is extremely demanding, and it is necessary to ensure that the dimensional accuracy, shape consistency and surface quality of each component meets the design requirements in order to ensure the overall performance and operational reliability of the compressor. This requires a measurement system with high precision, high resolution and powerful data processing capabilities.

Inspection program:

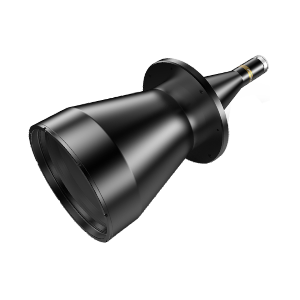

Telecentric Lens: POMEAS F-port large field of view telecentric lens is adopted, which has a large inspection field of view and high-resolution double-sided telecentric design. The telecentric lens is characterized by its imaging properties, which can minimize the image distortion caused by changes in the distance between the object and the lens, thus ensuring the accuracy of the measurement results. It is particularly suitable for precision measurement of large-sized objects and provides an ideal solution for the measurement of air conditioning compressor components.

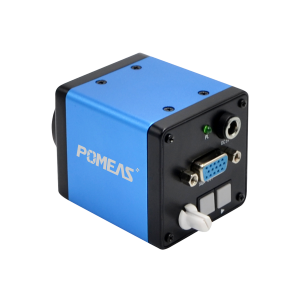

Multi-Megapixel Industrial Camera: With the multi-megapixel industrial camera, it can capture more delicate image details and improve the accuracy and reliability of measurement. The high stability and anti-interference capability of industrial cameras also ensures the stability and consistency of measurement results.

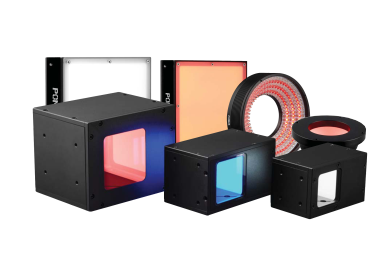

Machine vision light source: Using the right machine vision light source can significantly improve the contrast and clarity of the image, further enhancing the accuracy of the measurement. The selection and adjustment of the light source needs to be customized according to the material, color and surface characteristics of the part being measured in order to achieve the best measurement results.

Program Advantages:

1、High precision measurement: The combination of telecentric lens and ten million industrial cameras can realize high precision image capture and measurement, which can meet the high requirements of dimensional accuracy and shape consistency of air conditioning compressor parts.

2、Large Field of View Measurement: The F-port large field of view telecentric lens provides a large inspection field of view, which can measure multiple parts or multiple areas of the parts at one time and improve the measurement efficiency.

3、High stability: the entire measurement system uses industrial-grade hardware and software, with high stability and anti-interference ability, can ensure the stability and consistency of the measurement results.

4、Easy to integrate and expand: the measurement program is easy to integrate with other automation equipment and software, easy to realize the automatic acquisition, analysis and storage of measurement data. At the same time, with the growth of measurement needs, you can easily expand the function and scale of the measurement system.

The measurement solution with POMEAS telecentric lens, 10 million industrial cameras and machine vision light source can meet the high precision measurement requirements of air conditioning compressor parts, improve measurement efficiency and stability, and provide powerful support for the production and quality control of air conditioning compressors.
