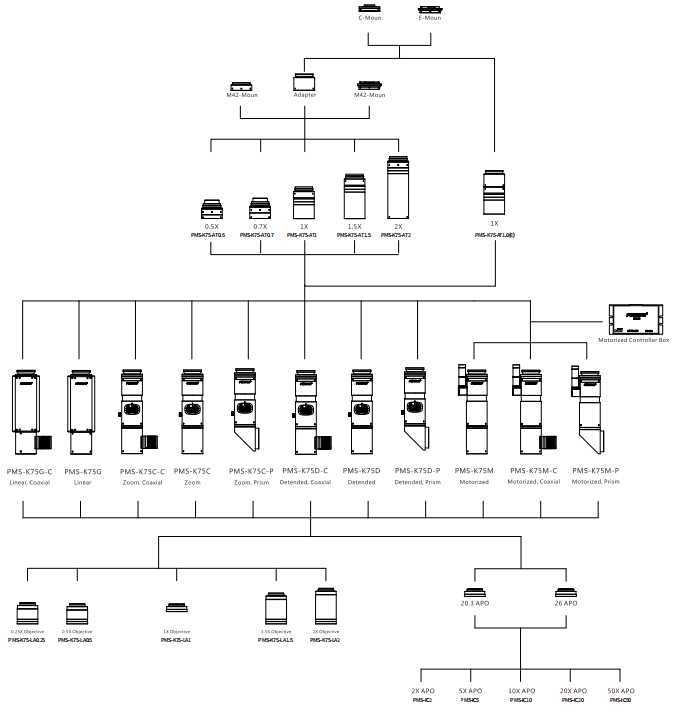

As the most versatile continuous zoom lens, motorized zoom lens has been widely used in various industries with its perfect combination of high resolution and high magnification. And the correct selection of its accessories is crucial to fully utilize the performance of the motorized zoom lens.

Interface:

The choice of interface needs to consider the compatibility with the equipment used. Different interface standards may affect the stability of lens installation and data transmission efficiency. When selecting a model, make sure that the interface matches the equipment for a seamless connection.

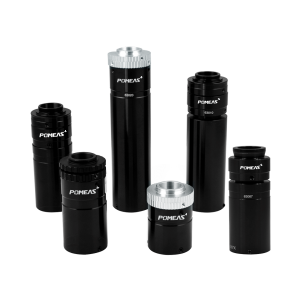

TV Mirror Tube:

TV tubes are available in a variety of magnifications, such as 0.5X, 0.67X, 1X, 2X, etc. Different magnifications affect the field of view and magnification of the lens. Different magnifications affect the field of view and magnification of the lens; 0.5X provides a wider field of view and is suitable for scenes that require observation of larger areas, while 2X achieves higher magnification and is suitable for situations that require more detail. Selecting the appropriate TV tube magnification according to actual needs can fulfill different application scenarios.

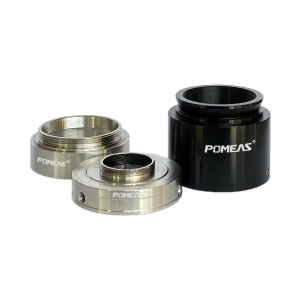

APO connecting ring:

The APO adapter ring serves to connect and optimize optical performance in a motorized zoom lens system. Its quality and precision directly affect the clarity and color reproduction of the image. Choosing a high-quality APO ring can ensure a good fit between the lens and other accessories, and improve the overall image quality.

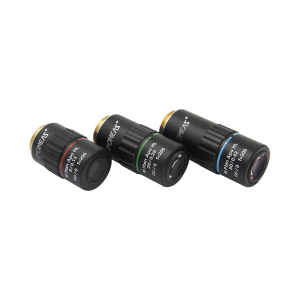

apo lens:

apo lenses are available in different magnifications such as 2X, 5X, 10X, 20X, 50X. these magnifications determine the magnification capability of the lens. 2X apo lenses are suitable for general magnification needs, while 50X apo lenses can provide extremely high magnification for observing tiny objects or details. When selecting an apo lens, you need to determine the appropriate magnification based on the specific application and object to be observed.

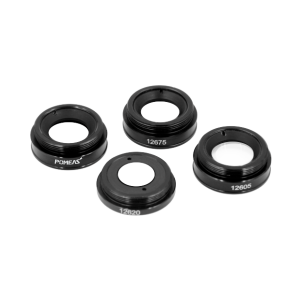

Additional Lenses:

Additional lenses are available in magnifications of 0.25X, 0.3X, 0.5X, 0.75X, 1.5X, 2X and so on. Additional lenses can further expand the function and application range of the lens. For example, 0.25X additional lens can reduce the magnification and increase the field of view, while 2X additional lens can increase the magnification. According to the actual needs, you can flexibly choose additional lenses to meet different shooting requirements.

When selecting accessories for motorized zoom lenses, it is necessary to comprehensively consider the characteristics and application requirements of each accessory to ensure that the most suitable combination of accessories is selected to give full play to the performance advantages of motorized zoom lenses.
