Difficulty of inner wall size inspection

Inner wall dimensional inspection is a challenging task in several fields, such as manufacturing and precision instrumentation. In particular, the inner wall size inspection of tiny deep holes is the most difficult of the difficult points. This is mainly because the hole diameter of tiny deep holes is small, the vast majority of inspection instruments can not reach into the measured hole for effective measurement. At the same time, due to the large depth of the hole, it is difficult to detect the dead space at the bottom, making accurate measurement of the inner wall dimensions particularly difficult.

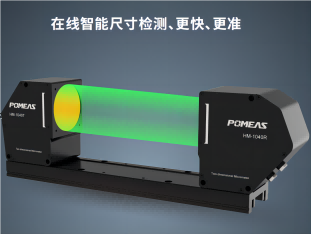

Inline Dimension Measurement Solution: POMEAS Inline Image Measuring Instruments

POMEAS online image measuring instrument adopts advanced image processing technology and machine vision algorithms to take pictures of the inner wall by camera, and analyze and process the captured images by image measuring software, so as to realize the accurate measurement of the inner wall size. This method is not only fast, but also highly accurate, and can well solve the problem of detecting the inner wall size of tiny deep holes.

Functional features of in-line image measuring instrument

High Precision Measurement: POMEAS In-Line Image Measuring Instrument adopts high-precision image processing algorithm, which is able to realize accurate measurement of inner wall dimensions and meet the needs of various precision measurements.

Multiple measurement modes: The instrument supports multiple measurement modes, including length, width, height, diameter, etc., which can meet the needs of different shapes and sizes of inner wall measurement.

Real-time display of measurement results: Measurement results can be displayed on the instrument screen in real time, which is convenient for users to observe and record.

Easy to Operate: POMEAS in-line image measuring instrument has a simple and easy-to-use interface, users only need to set up and operate the instrument.

Efficient Measurement: Thanks to the image measurement technology, the instrument is able to measure the inner wall dimensions quickly, which greatly improves the measurement efficiency.

POMEAS in-line image measuring instrument provides an efficient and accurate solution for inner wall dimension inspection. It has not only solved the problem of detecting the inner wall dimensions of tiny deep holes, but also provided a powerful support for precision measurement in various fields.
