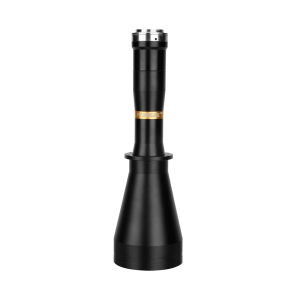

In the field of optical inspection and imaging, telecentric lenses are highly regarded for their unique imaging characteristics and wide range of applications. Among them, F-port telecentric lenses, as a member of the telecentric lens family, play an important role in industrial inspection, machine vision and other fields by virtue of their characteristics designed for high pixel sensors.F-port telecentric lens characteristics, as follows:

1. Designed for high-resolution sensors

The F-port telecentric lens is designed specifically for 35mm-size target faces with multi-megapixel resolution sensors. This design feature allows the lens to take full advantage of high-megapixel sensors to capture even finer and sharper image details. At the same time, the F-port telecentric lens is also perfectly adapted to 4K and 8K resolution line array cameras, which further improves the resolution and clarity of the image and meets the stringent requirements of high-precision inspection on image quality.

2. Professional telecentric design ensures true size reproduction

F-port telecentric lens adopts professional telecentric design, the core of which lies in the image and object telecentricity to reach the same high level of standards. This design effectively eliminates changes in image magnification caused by changes in the angle of view of the lens, ensuring that the size of the measured object received by the sensor is consistent with the true size. This is critical for applications requiring high-precision dimensional measurements, such as the inspection of large-size cell phone screens, PCB boards, flat glass, engine parts, and air conditioning compressor parts.

3. Widely used in high-precision measurement of large-sized objects

Whether it is the need to accurately control the dimensional accuracy of the cell phone screen manufacturing, PCB boards for the precise positioning of small components, or flat glass, engine parts and other large-sized workpiece size inspection, F-port telecentric lens can provide stable and reliable imaging support. Its high-precision, high-resolution imaging characteristics, for the industrial production process of quality control and efficiency enhancement provides a strong guarantee.

4. Interface standard, easy to integrate

As an interface type of telecentric lens, F port follows the standardized design principle, which enables the lens to be integrated with a variety of industrial inspection equipment and automation systems. This easy integration not only reduces the user's equipment procurement and installation costs, but also improves the overall compatibility and stability of the system. At the same time, the standardized interface also provides convenient conditions for the maintenance and upgrade of the lens.
