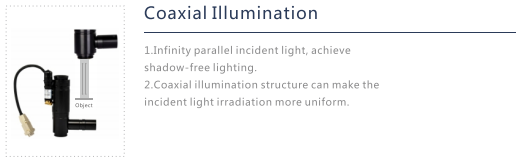

I. Coaxial Drop Lighting Technology

The coaxial falling illumination system paired with the zoom lens demonstrates its unique lighting advantages:

• Shadow-free illumination: By adopting the infinity parallel light incidence design, it ensures that no shadows are created when the light strikes the object, which greatly improves the accuracy of observation and measurement.
• Uniform Light Distribution: The coaxial drop structure allows the incident light to be more evenly distributed on the surface of the object being observed, avoiding visual errors that may be brought about by uneven illumination and providing ideal lighting conditions for fine observation and inspection.

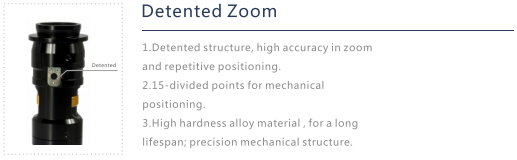

II. Precision of the Fixed Multiplier Function

The fixed-magnification function gives the zoom lens a high degree of magnification repeatability and stability:

• Precise Mechanical Positioning: The precise mechanical positioning structure ensures that the lens can accurately return to the preset magnification position in different times of use, which greatly improves the working efficiency and consistency of measurement.
• Multi-segment mechanical positioning: support 15 segments mechanical positioning, meet a variety of observation needs, whether it is a fine structure or macro scene, can be easily dealt with.
• Durable and Reliable: The use of high hardness alloy material not only prolongs the service life, but also ensures the mechanical structure is sturdy and reliable, and maintains the excellent performance even under prolonged use.

III. Convenience and efficiency of motorized zoom

Motorized zoom function makes lens operation more convenient and efficient:

• High-speed and high-precision: Equipped with imported DC servo motor, it realizes high-speed zoom speed and high-precision repetitive positioning, which provides strong support for dynamic observation and rapid measurement.
• Flexible control: The motorized control system supports single-axis or dual-axis control via 9-pin RS-232 serial port, which allows users to set up flexibly according to the actual needs to meet the control needs under different application scenarios.
• Strong stability: Even under severe vibration environment, the mechanical stability can be maintained to ensure the accuracy of observation and measurement without external interference.

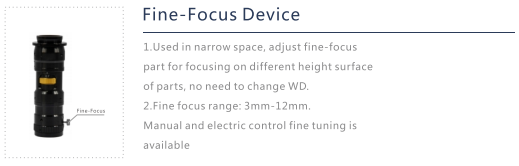

IV. Flexibility and adaptability of the fine-tuning device

The design of the fine-tuning device further enhances the flexibility and adaptability of the zoom lens:

• Strong spatial adaptability: suitable for observation and measurement in narrow space, through the adjustment of the fine-tuning structure can realize the focus of the workpiece of different heights, without changing the original working distance of the lens, greatly broadening the use of the scene.
• A variety of fine-tuning options: 3mm and 12mm fine-tuning structure for users to choose from, to meet the needs of different precision adjustment.
• Manual-electric dual control: supports both manual fine-tuning and electric control fine-tuning structure, users can flexibly choose the mode of operation according to the actual situation, to enhance work efficiency and convenience.
