360° industrial inspection lenses, which are mainly used in the inner/outer wall inspection of products, are mainly divided into two categories according to different application scenarios: 360° inner wall inspection lenses and 360° outer wall inspection lenses.

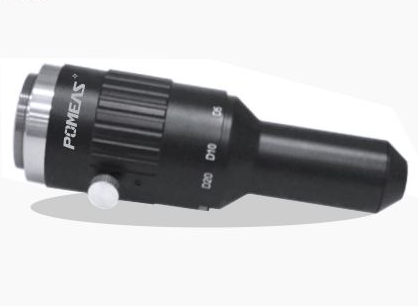

360° internal wall inspection lens Features:

1、Large field of view: Special lenses developed specifically for internal wall inspection enable large field of view for internal wall inspection, thus enabling full coverage of the internal space of the object to be inspected.

2、Highly accurate inspection: Supports inspection of bores with a wide range of diameters and heights, e.g., maximum support for bores with diameters ranging from 0.8mm-5mm and heights ranging from 0.4mm-5mm, ensuring the accuracy of inspection results.

3、Non-invasive: In applications such as photographing the bottom of the object's bore and the vertical inner wall, there is no need to place the lens inside the bore, and the interior can be inspected from the outside, which greatly saves space and cost, while avoiding damage to the product.

4、High Definition: The aperture of the diaphragm can be customized to adjust the brightness and depth of field, which provides higher clarity than traditional lenses that rely on depth of field to complete the inspection of the inner wall.

5、Compact and lightweight: The lens is designed to be compact and save installation space, making it easy to operate in limited space.

6、Stability and reliability: the use of high-quality optical materials and precision mechanical structure, able to resist harsh industrial environments, to ensure stable work for a long time.

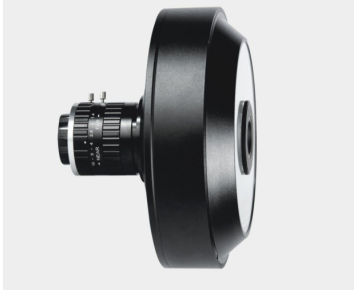

360° outer wall inspection lens features:

1、Omni-directional inspection: It can realize all-round visual inspection of the object without rotating or moving the object to be inspected, which is especially suitable for comprehensive inspection of the appearance of the product.

2、Wide material adaptability: Wide range of measurable material diameters (e.g. 10-100mm), suitable for inspection of products of various sizes.

3、Efficient light source installation: the working distance is large, which is convenient for the installation and adjustment of the light source to ensure that a clear image can be obtained under different light conditions.

4、Convenient system integration: Compact light path design, convenient for system integration, can be easily integrated into existing production lines or inspection systems.

5、Continuous image without splicing: Through special optical design, the outside of the object ring can be perfectly presented in one image without image splicing, simplifying the layout and operation process of the vision system.

6、Various application scenarios: Suitable for inspection in a variety of industries such as beverage packaging, pharmaceutical packaging, automotive parts, etc. It meets the needs of defect detection, character recognition and other applications.
