Image Dimension Gauge - Accurate Measurement of Plastic Parts

share:

2024/10/15

author:adminBOSS

In today's industry, where dimensional accuracy of products is becoming increasingly critical, POMEAS image dimensioning systems stand out for their unique advantages.





I. Advanced Optical System:

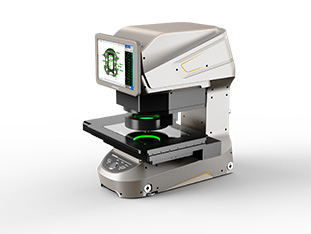

POMEAS image size measuring instrument adopts double telecentric lenses with two 20 megapixel cameras, which lays a solid foundation for accurate measurement. The automatic lifting of multi-angle surface light and carefully customized surface coaxial light can adapt to products of different shapes and materials, ensuring uniform and clear illumination during the measurement process. At the same time, the independent powerful AI edge calculation algorithm easily realizes the precise edge searching on the surface, and the boundary clutter filters the invalid area, so as to realize the high-precision measurement of the surface size. Whether it is a tiny part or a large workpiece, it can accurately obtain size information.





II. Intelligent light source adjustment:


The light source design of the measuring instrument is unique, combining multiple variable adjustable lighting units. Through the built-in brightness sensor, it can automatically adjust the height, brightness and angle of the light source of the system according to different ambient lighting, in order to achieve the best visual effect and accurate physical object edges. This intelligent adjustment function not only improves the accuracy of the measurement, but also greatly enhances the adaptability of the measuring instrument in different environments and reduces the measurement errors caused by lighting problems.





III. Efficient Spot Spectral Confocal Sensor:


POMEAS image size measuring instrument adopts point spectrum confocal sensor, especially the point spectrum confocal sensor with extra large working distance, with visual positioning function, it can measure the height of products and thickness of transparent products quickly. This feature is of great value in the field of electronic products and optical components, providing a comprehensive dimensional measurement solution for organizations.







With its advanced optical system, intelligent light source adjustment and highly efficient point-spectrum confocal sensor, POMEAS Image Dimensioner has become a reliable tool for dimensional measurement in the industrial field. With high accuracy, high efficiency and high adaptability, it provides a strong guarantee for the production quality control of enterprises.
