Detection background:

In the production and quality inspection of metal parts, it is crucial to accurately measure their contour dimensions. However, the cylindrical shape of metal parts and the varying diameters of the upper and lower circles create many difficulties in measurement. Not only is it necessary to measure the dimensions of the product, but it is also necessary to scan the contour and measure the height of the product.

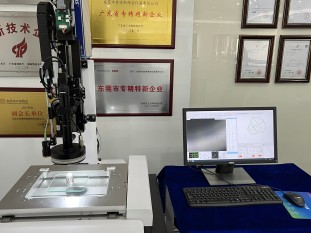

Measurement Program:

1. POMEAS 6.5X zoom lens module can provide high magnification function, so that we can clearly observe the details of metal parts and accurately measure their dimensions.

2. 5 rings and 8 zones light source can provide uniform illumination to ensure the clarity and contrast of the image and make the measurement result more accurate.

3. The point spectrum sensor can quickly scan the contour of the metal part and obtain its 3D shape information. By scanning the contour, we can accurately measure the height of the metal part and the diameter of the upper and lower circles.

4. The cantilevered platform provides stable support for the measurement, ensuring that the metal part will not move or shake during the measurement process, thus ensuring the accuracy of the measurement results.

Detecting effects:

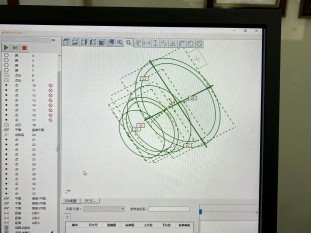

Rendering I

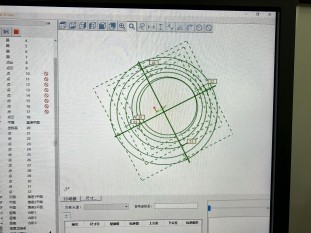

Rendering II

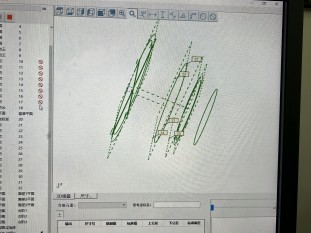

Rendering III
