Measurement Programme For Speed Skating Blade Contour Dimensions

2023/12/14

author:adminBOSS

Inspection needs:

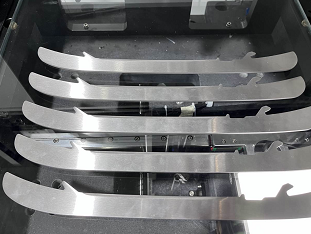

Measure the dimensions of ice skate length, width and contour.

Inspection Difficulties:

The shape of the ice skates is irregular, the traditional solution to measure the contour data is not accurate.

Detection programme:

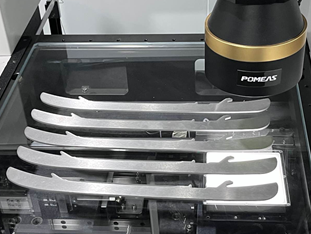

1. Lens using Pomeas double telecentric optical lens. 2;

2. with Gigabit network industrial camera;

3. Use plane vision light source and image processing system independently developed by Pomeas.

Inspection results:

Programme advantages:

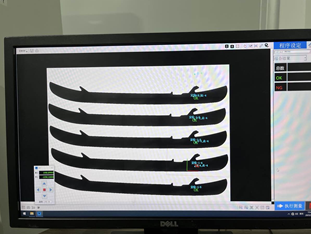

1. Ice skates are large in size, and Pomeas's measurement solution has an image splicing function, which allows multiple products to be measured at the same time with regular 2D dimensions.

2.Pomeas 2D contour measurement solution solves the problem of irregular shape detection.

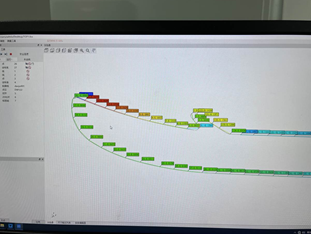

3.CAV graphic report can be more intuitive to observe the product abnormality and analyse the reason.
