APO Laser Auto-focus Module--Motor

The LFS sensor series can be integrated into customer supplied microscope systems;Several sensor models are available to meet the needs of various applications.

APO laser auto-focus module --motor

  • Download now



    APO Laser Auto-focus Module--Motor  Product Feature:

    ——

    1. Compact structure, the semiconductor laser, optical system, high-speed signal processing module, laser control, motion control, as well as software algorithms into one focusing mode using coaxial focusing mode.Effectively solve the problem of blocking when focusing;



    2. Focusing accuracy of μm level, focusing speed up to 6.5khz level, with high focusing accuracy, focusing speed, product performance is stable and reliable, can be widely used in complex applications and environments.





    APO Laser Auto-focus Module--Motor  Product Advantage:

    ——

    1.The LFS sensor series can be integrated into customer supplied microscope systems;

    2.It can be widely used in the fields of real-time focusing for microscopic observation, precision laser welding, precision laser cutting, etc.

    3.Several sensor models are available to meet the needs of various applications. cutting, etc.





    Focus Motion Dedicated Controller  Product Introduction:

    ——

    1.Supports A/B two groups of motor drive control

    2.Support photoelectric sensor limit for A/B two sets of motors

    3.Supports NPN-type and PNP-type limit sensors

    4.Support 1 channel high current constant current LED light source: default 3.3V/1A (support 0.75A~1.5A)

    5.Supports analog signal output

    6.Support RS-232 communication

    7.Support control of multi-channel motor movement

    8.Supports rotating nose wheels for porous objectives





    Objective Lens Controller  Product Introduction:

    ——

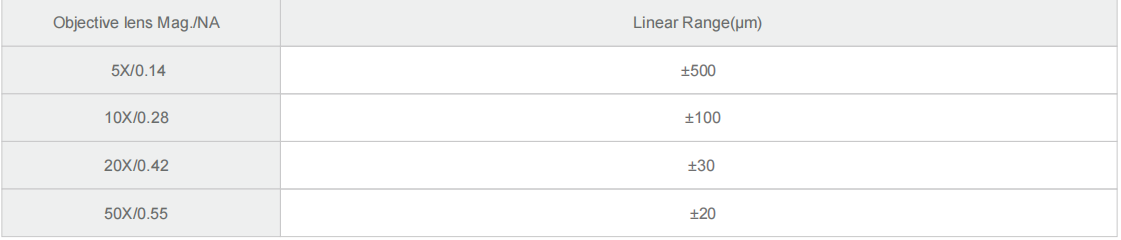

    1.Suitable for universal objective lenses, commonly used 2X, 5X, 10X, 20X objective lenses are applicable;

    2.Can focus on various types of surfaces that are stationary or moving in real time, such as surface focus, layered focus, etc.;

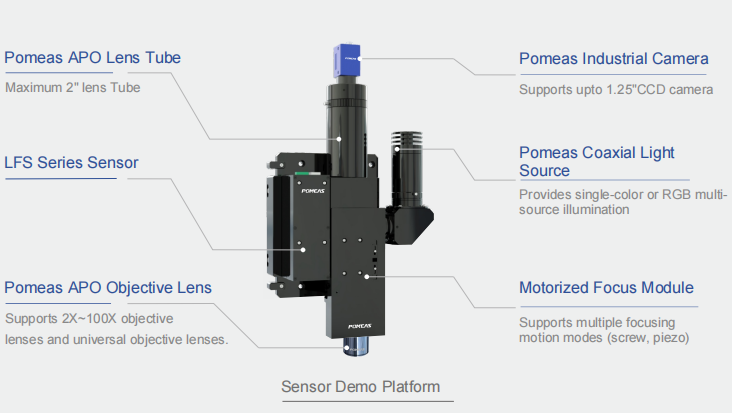

    POMEAS- LSF 4 SERIES:






    Application Case:





    Application Area:

    ——


    Widely used in the fields of real-time focusing for microscopic observation, precision laser welding, precision laser cutting, etc.

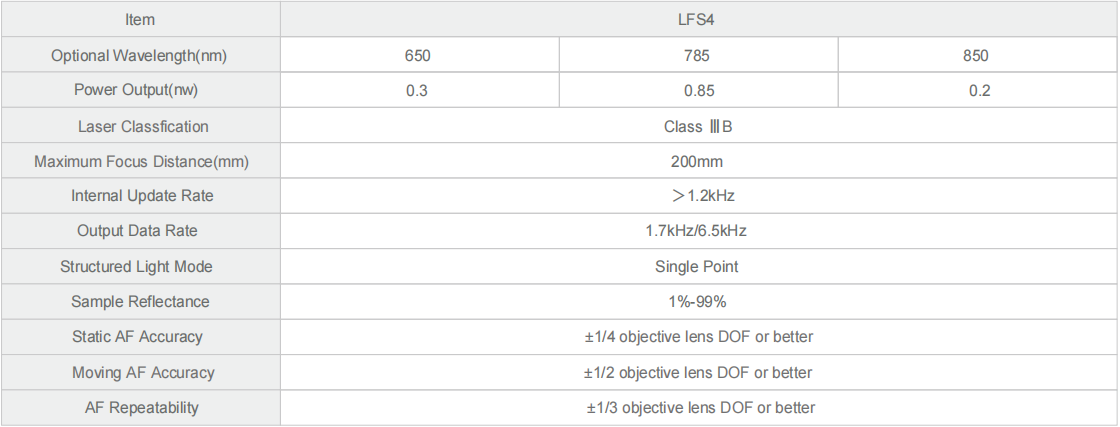

    Product Parameter :

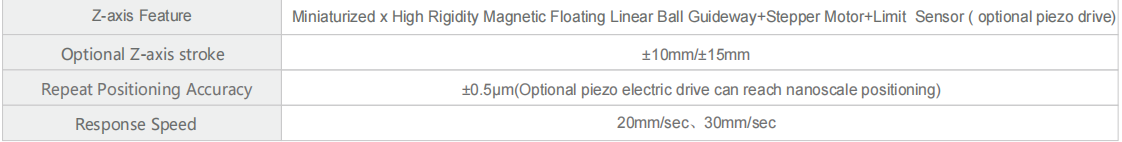

    Motion Control:

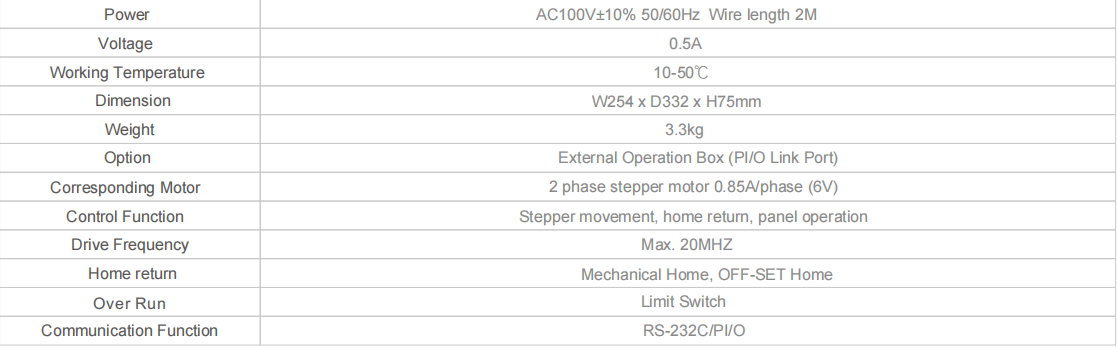

    Focus Motion Dedicated Controller:
